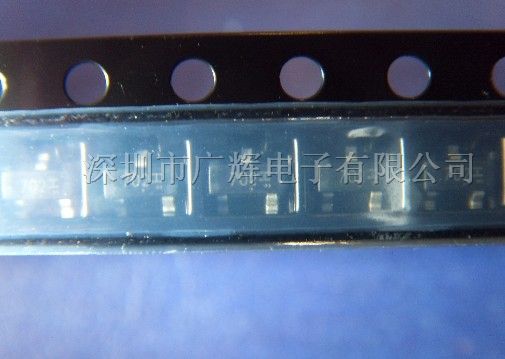

供应60V,115MA N-CH MOS管2N7002

2N7000 / 2N7002 / NDS7002A
N-Channel Enhancement Mode Field Effect Transistor
General Description Features
___________________________________________________________________________________________
Absolute Maximum Ratings TA = 25°C unless otherwise noted
Symbol Parameter 2N7000 2N7002 NDS7002A Units
VDSS Drain-Source Voltage 60 V
VDGR Drain-Gate Voltage (RGS < 1 MW) 60 V
VGSS Gate-Source Voltage - Continuous ±20 V
- Non Repetitive (tp < 50μs) ±40
ID Maximum Drain Current - Continuous80 mA
- Pulsed500
PD Maximum Power Dissipation00 mW
Derated above 25oC 3.2 1.6 2.4 mW/°C
TJ,TSTG Operating and Storage Temperature Range -55 to 150 -65 to 150 °C
TL Maximum Lead Temperature for Soldering
Purposes, 1/16" from Case for 10 Seconds
300 °C
THERMAL CHARACTERISTICS
RqJA
Thermal Resistance, Junction-to-Ambient 312. °C/W
2N7000.SAM Rev. A1
These N-Channel enhancement mode field effect transistors
are produced using Fairchild's proprietary, high cell density,
DMOS technology. These products have been designed to
minimize on-state resistance while provide rugged, reliable,
and fast switching performance. They can be used in most
applications requiring up to 400mA DC and can deliver
pulsed currents up to 2A. These products are particularly
suited for low voltage, low current applications such as small
servo motor control, power MOSFET gate drivers, and other
switching applications.
High density cell design for low RDS(ON).
Voltage controlled small signal switch.
Rugged and reliable.
High saturation current capability
