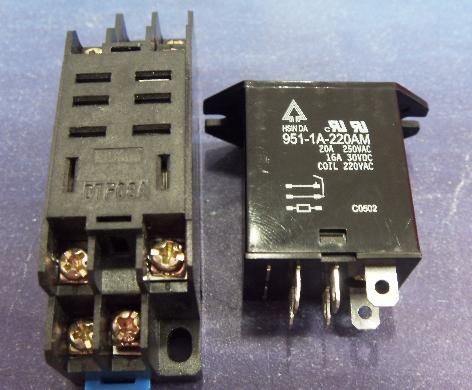

| FEATURES |
● UL ,CE & CQC safety approval.
● 1 Pole and 2 Pole types are available with switching current of 16A (1Pole) and 10A (2 Pole).
● PCB terminal and Socket terminal are selectable, and for direct panel mount, flange case type is available.
● Nominal power DC 900mW & AC 1.2VA.
● Operating power DC 510mW.
● Either with or without lamp is optional for AC& DC coil.
● Low coil power consumption with high response time
| |
|
 |
|
 |
UL FILE NO:E162117/E188367
TUV FILE NO:
CE DECLARATION OF CONFORMITY
CQC FILE NO:
| |
|
|
CONTACT RATINGS |
| ●Contact Arrangement |
|
|
|
1 Form A(SPST-NO) |
|
|
1 Form B(SPST-NC) |
|
|
1 Form C(SPDT) |
|
|
2 Form C(DPDT) |
|
●Max. Switching Power |
|
|
|
|
1 Form A(SPST-NO) |
1 Form A 5000VA 600W |
|
|
1 Form B(SPST-NC) |
1 Form B 4000VA 480W |
|
|
1 Form C(SPDT) |
1 Form C 4000VA 480W |
|
|
2 Form C(DPDT) |
2 Form C 2500VA 300W |
|
●Max. Switching Voltage |
|
|
|
1 Form A(SPST-NO) |
250VAC 30VDC |
|
|
1 Form B(SPST-NC) |
250VAC 30VDC |
|
|
1 Form C(SPDT) |
250VAC 30VDC |
|
|
2 Form C(DPDT) |
250VAC 30VDC |
|
● Max. Switching Current |
|
|
|
|
1 Form A(SPST-NO) |
20 A |
|
|
1 Form B(SPST-NC) |
16 A |
|
|
1 Form C(SPDT) |
16 A |
|
|
2 Form C(DPDT) |
10 A |
|
●Contact Resistance |
|
|
|
1 Form A(SPST-NO) |
<= 50 mΩ |
|
|
1 Form B(SPST-NC) |
<= 50 mΩ |
|
|
1 Form C(SPDT) |
<= 50 mΩ |
|
|
2 Form C(DPDT) |
<= 50 mΩ |
|
●Resistive Load |
|
|
|
|
1 Form A(SPST-NO) |
|
|
|
1 Form B(SPST-NC) |
|
|
|
1 Form C(SPDT) |
|
|
|
2 Form C(DPDT) |
|
|
●Contact Material |
|
|
|
1 Form A(SPST-NO) |
Ag Alloy |
|
|
1 Form B(SPST-NC) |
Ag Alloy |
|
|
1 Form C(SPDT) |
Ag Alloy |
|
|
2 Form C(DPDT) |
Ag Alloy |
|
●Inductive Load |
|
|
|
1 Form A(SPST-NO) |
|
|
|
1 Form B(SPST-NC) |
|
|
|
1 Form C(SPDT) |
|
|
|
2 Form C(DPDT) |
|
|
●Pilot Duty Load |
|
|
|
1 Form A(SPST-NO) |
|
|
|
1 Form B(SPST-NC) |
|
|
|
1 Form C(SPDT) |
|
|
|
2 Form C(DPDT) |
|
|
●Rating Load |
|
|
|
1 Form A(SPST-NO) |
1 Form A 20A/250VAC 16A/30VDC |
|
|
1 Form B(SPST-NC) |
1 Form B 16A/250VAC 16A/30VDC |
|
|
1 Form C(SPDT) |
1 Form C 16A/250VAC 16A/30VDC |
|
|
2 Form C(DPDT) |
2 Form C 10A/250VAC 10A/30VDC |
|
●Tv Rating |
|
|
|
1 Form A(SPST-NO) |
|
|
|
1 Form B(SPST-NC) |
|
|
|
1 Form C(SPDT) |
|
|
|
2 Form C(DPDT) |
|
|
●Remark |
|
|
|
1 Form A(SPST-NO) |
|
|
|
1 Form B(SPST-NC) |
|
|
|
1 Form C(SPDT) |
|
|
|
2 Form C(DPDT) |
| | |
|
CHARACTERISTICS |
| ●Electrical Life |
100,000 |
|
●Mechanical Life |
10,000,000 |
|
●Initial Insulation Resistance |
|
|
●Contact Resistance (Initial) |
|
|
●Operate Time |
≤25ms |
|
●Release Time |
≤25ms |
|
●Initial Dielectric Strength |
50/60Hz 500VAC 1 min. (between open contacts)
50/60Hz 1500VAC 1 min. (between contacts and coil)
50/60Hz 1500VAC 1 min. (between contact sets)
|
|
● Vibration Resistance |
Malfunction: 10 to 55Hz at Double Amplitude of 1.5mm
Destructive: 10 to 55Hz at Double Amplitude of 1.5mm
|
|
●Shock Resistance |
Malfunction: 10G (11ms) / Destructive: 100G (6ms) |
|
●Ambient Temperature |
|
| ●Relative Humidity |
|
| ●Unit Weight
|
Approx. 35g |
| ●Remark
|
| |
| ORDERING INFORMATION |
| 951 |
- |
1C |
- |
12 |
D |
P |
M |
L |
- |
G |
- |
F |
|
|
| 1 |
|
2 |
|
3 |
4 |
5 |
6 |
7 |
|
8 |
|
9 |
|
| |
|
1 |
Model Number
951 |
|
2 |
Contact Arrangement
1A = 1 Form A (SPST-NO)
1B = 1 Form B (SPST-NC)
1C = 1 Form C (SPDT)
2C = 2 Form C (DPDT)
|
|
3 |
Coil Voltage
DC:6~100V
AC:12~270V
|
|
4 |
Coil Type
D: DC
A: AC
|
|
5 |
Terminal Type
Nil = Socket Terminal
P = P.C.B. Terminal
|
|
6 |
Cover Type
Nil = General Type
M = Flange Top Type
S = Special Type
E = Special Flange Top Type
|
|
7 |
Optional
Nil = General Type
L = With Lamp and Diode (DC Coil Type Only)
N = With Lamp
B = With Push Button
T = With Lamp and Push Button
K = With Lamp and Diode and Push Button
(DC Coil Type Only)
|
|
8 |
Contact Material
Nil = General Type
G = Contact with Gold Plating
|
|
9 |
Type of Insulation
Nil = ClassA
F = Class F
| |
| |
| COIL RATINGS (at 20℃) |
|
COIL
TYPE |
Coil Nominal
Voltage (V) |
Coil
Resistance
(Ω+-10%) |
Pick-Up
Voltage (V)
<= |
Drop-Out
Voltage (V)
>= |
Nominal
Current
(mA) |
|
AC |
12 |
46 |
9 |
3.6 |
|
| 24 |
180 |
18 |
7.2 |
|
| 110 |
3750 |
82.5 |
33 |
|
| 120 |
4430 |
90 |
36 |
|
| 220 |
12950 |
165 |
66 |
|
| 240 |
18790 |
180 |
72 |
|
| 270 |
24150 |
202.5 |
81 |
|
|
DC Standard Coils |
6 |
40 |
4.5 |
0.6 |
150 |
| 12 |
160 |
9 |
1.2 |
75 |
| 24 |
650 |
18 |
2.4 |
37 |
| 48 |
2600 |
36 |
4.8 |
19 |
| 100 |
11000 |
75 |
10 |
9 | | |
|
* Max Continuous Voltage at 20℃: 130% of Coil Nominal Voltage.
