说明

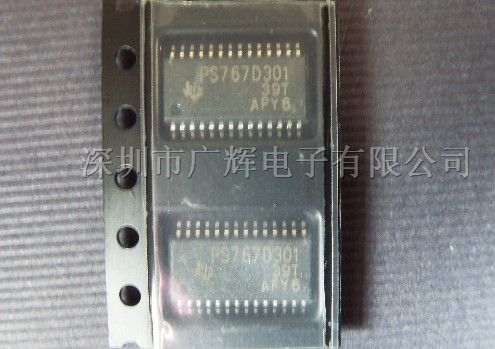

The TPS767D3xx family of dual voltage regulators offers fast transient response, low dropout voltages and dual outputs in a compact package and incorporating stability with 10-µF low ESR output capacitors.

The TPS767D3xx family of dual voltage regulators is designed primarily for DSP applications. These devices can be used in any mixed-output voltage application, with each regulator supporting up to 1 A. Dual active-low reset signals allow resetting of core-logic and I/O separately.

Because the PMOS device behaves as a low-value resistor, the dropout voltage is very low (typically 350 mV at an output current of 1 A for the TPS767D325) and is directly proportional to the output current. Additionally, since the PMOS pass element is a voltage-driven device, the quiescent current is very low and independent of output loading (typically 85 µA over the full range of output current, 0 mA to 1 A).

特性

• Qualified for Automotive Applications
• Dual Output Voltages for Split-Supply Applications
• Output Current Range of 0 mA to 1.0 A Per Regulator
• 3.3-V/2.5-V, 3.3-V/1.8-V, and 3.3-V/Adjustable Output
• Fast-Transient Response
• 2% Tolerance Over Load and Temperature
• Dropout Voltage Typically 350 mV at 1 A
• Ultra Low 85 µA Typical Quiescent Current
• 1 µA Quiescent Current During Shutdown
• Dual Open Drain Power-On Reset With 200-ms Delay for Each Regulator
• 28-Pin PowerPAD™ TSSOP Package
• Thermal Shutdown Protection for Each Regulato
