EZ

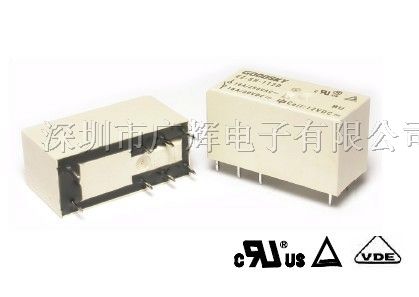

 EZ-SH-124D,EZ-SH-112D

Outline (L x W x H)

29.0 x 12.6 x 15.8 mm

Weight

12.5 g

Features

1. EZ Series Relays are designed for switching capacity by 16A to comply with industrial control system use.
2. Slim type and low profile (29.0 x 12.6 x 15.6) is developed to provide end users with more flexibility in PC Board design.
3. Low power consumption and both AC and DC coil available
4. Proper insulation distance is equipped to ensure EZ will have a 5000VAC dielectric strength between contact and coil.
5. Complete protective construction from dust and soldering flux is designed. If required, plastic epoxy resin sealed type is available for washing procedure.
6. Halogen Free relay available.
7. In accordance with IEC 60335-1 and IEC 60730-1.

Contact Specification

Contact Form

SPST / SPDT

Contact Rating

16A/250VAC

16A/30VDC

Coil Specification

Coil Voltage

DC

3, 5, 6, 9, 12, 15, 18, 24, 48, 60, 110

AC

24, 115, 230

Power Consumption

DC Coil: 0.4W

AC Coil: 0.61~0.88VA

Dielectric Strength

Between Coil & Contact

(50/60 Hz for 1 minute)

AC 5,000V

Between Contact

(50/60 Hz for 1 minute)

AC 1,000V

Life Expectancy (Operations)

Electrical

1 x 10⁵

Mechanical

1 x 10⁷

Safety Standard

UL, C-UL, TÜV, VDE, CQC

P.C.B Layout

Mounting Method

PC board terminal
