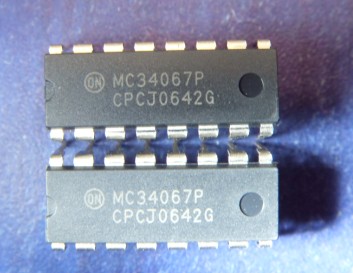

The MC34067/MC33067 are high performance zero voltage switch resonant mode controllers designed for off-line and dc-to-dc converter applications that utilize frequency modulated constant off-time or constant deadtime control. These integrated circuits feature a variable frequency oscillator, a precise retriggerable one-shot timer, temperature compensated reference, high gain wide bandwidth error amplifier, steering flip-flop, and dual high current totem pole outputs ideally suited for driving power MOSFETs.

Also included are protective features consisting of a high speed fault comparator and latch, programmable soft-start circuitry, inputundervoltage lockout with selectable thresholds, and reference undervoltage lockout.

These devices are available in dual-in-line and surface mount packages.

特性
Zero Voltage Switch Resonant Mode Operation
Variable Frequency Oscillator with a Control Range Exceeding 1000:1
Precision One-Shot Timer for Controlled Off-Time
Internally Trimmed Bandgap Reference
4.0 MHz Error Amplifier
Dual High Current Totem Pole Outputs
Selectable Undervoltage Lockout Thresholds with Hysteresis
Enable Input
Programmable Soft-Start Circuitry
Low Startup Current for Off-Line Operation
Pb-Free Packages are Available*

祥见：https://www.onsemi.cn/PowerSolutions/product.do?id=MC33067

工作电压值(V):9

工作电压值(V):20

输出电压值(V):10.300

输出电流(A):0.300

模式:谐振

开关频率:525~2050

封装/温度(℃):16PDIP/0~70

描述:零电压开关谐振模式工作

样品价格/10片(套):￥8元
