The Schottky Power Rectifier employs the Schottky Barrier principle with a barrier metal that produces optimal forward voltage drop-reverse current tradeoff. Ideally suited for low voltage, high frequency rectification, or as a free wheeling and polarity protection diodes in surface mount applications where compact size and weight are critical to the system. This package provides an alternative to the leadless 34 MELF style package. These state-of-the-art devices have the following features:

特性
Guardring for Stress Protection
Very Low Forward Voltage
Epoxy Meets UL94, VO at 1/8"
Package Designed for Optimal Automated Board Assembly Mechanical Characteristics:

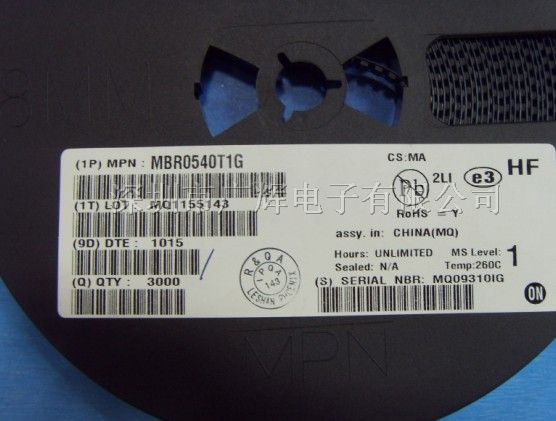

Reel Options: 3,000 per 7 inch reel / 8 mm tape
Reel Options: 10,000 per 13 inch reel / 8 mm tape
Device Marking: B4
Polarity Designator: Cathode Band
Weight: 11.7 mg (approximately)
Case: Epoxy Molded
Finish: All External Surfaces Corrosion Resistant and Terminal Leads are Readily Solderable
Lead and Mounting Surface Temperature for Soldering Purposes: 260 °C max. for 10 Seconds
Pb-Free Packages are Available
